Industrial encoders absolute

Absolutely universal – reliable position feedback without referencing, single turn and multi turn technology





Product Description



SH11 Incremental Solid Shaft Rotary Encoder Price/Absolute Mini Rotary Encoder Switch



Working Voltage

 10-30V

 5V/8V

 Working TEMP

 0°Cto+70°C \ -40°Cto+100°C

 Current Consumption

 ≤100mA

 ≤150mA

 Storage TEMP

 -30°Cto+80°C

 Power Consumption

≤3W

 Ambient Humidity

 85%(non-condensing)

 Output Signal

 complementary

 Drive

 IP Code

 IP 54

 Signal Form

 AB  square wave

 AA-BB- square wave

 Max RPM

 3000 RPM (max)

 Output Current

 ≤20mA

 Axial & Radial Load

Axial 30N ,Radial 20N

 Rise & Fall Time

 ≤1000nS

 Weight

 ≈1kg

 Output Frequency

 ≥100kHz

Maximum Angle Acceleration

 ≤10 rad/s

 Amplitude

 VL≤1.5VDC

 VL≤0.5VDC

Start torque 20°C

 0.02Nm

 VH≥Vcc-2.5

 VH≥2.5

Vibration Endurance

 Vibrating (50-2000Hz)

 ≤100m/s (10g)

 A,B Signal Accuracy

 Duration of Signal

1/2T±1/8T

 Impact(11ms)

 ≤1000m/s (100g)

 Signal Phase Difference

 1/4T±1/8T

 Case Material

 AL+FE

 Isolation

≥10MΩ

 Shaft Material

 2Cr13

 Voltage Withstand

 500V 1min

 Shaft Diameter

 Φ30-65mm

 Resolution

 10-2500 PPR

 Connection Type

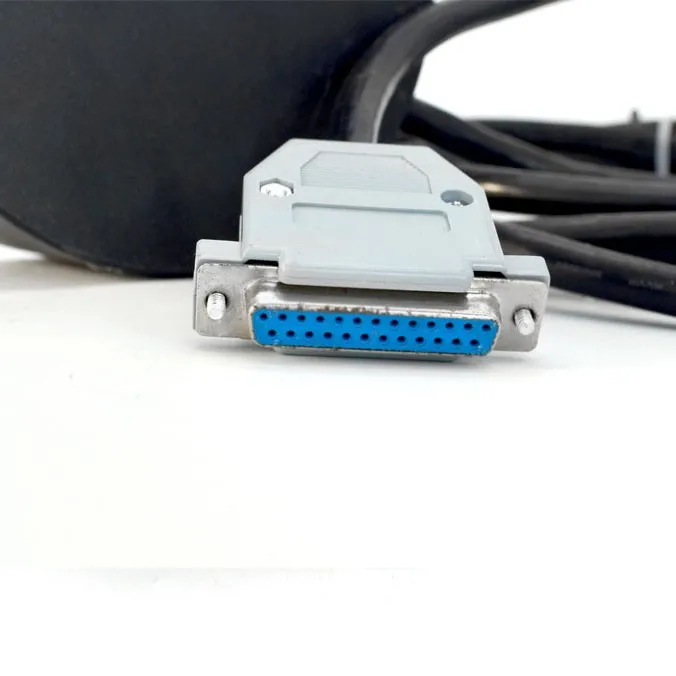

 7.5M Radial Outlet + DB15 plug

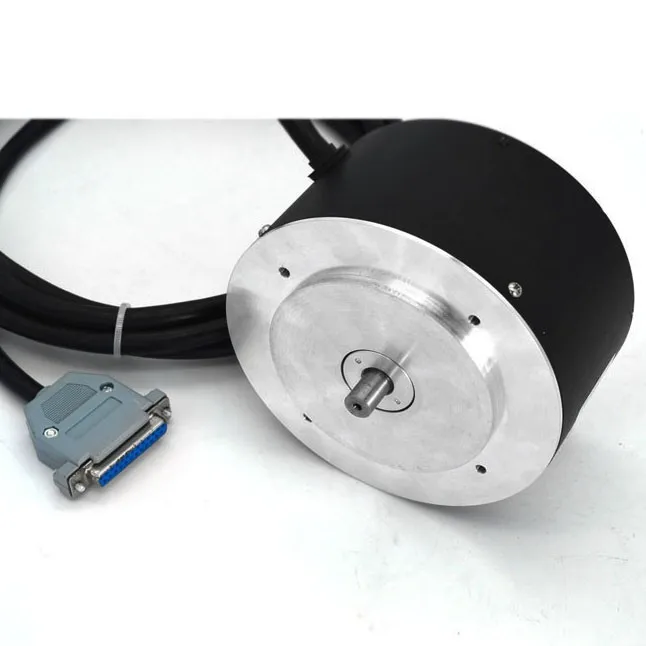

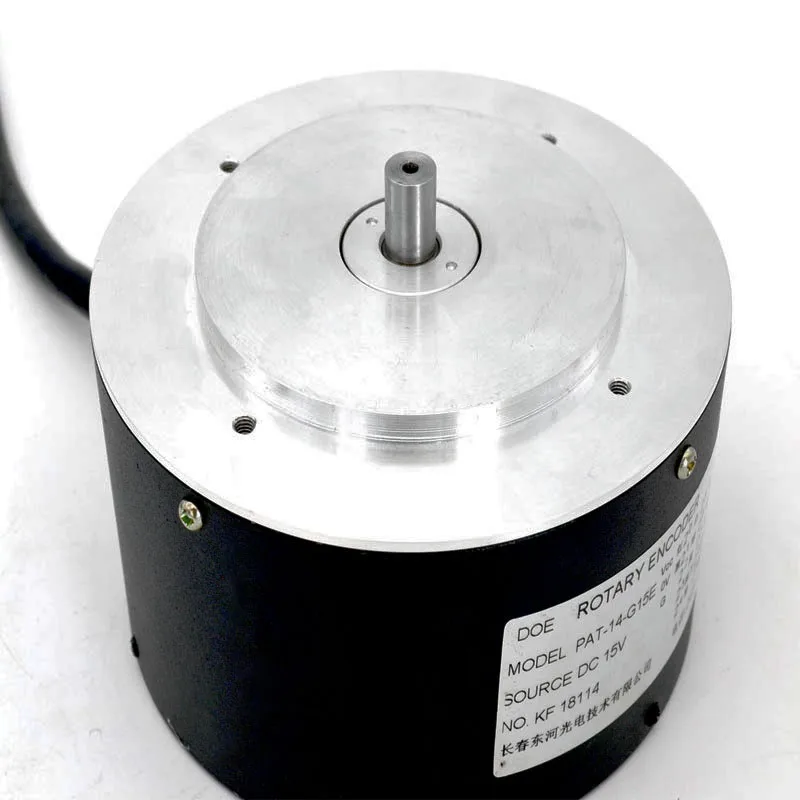

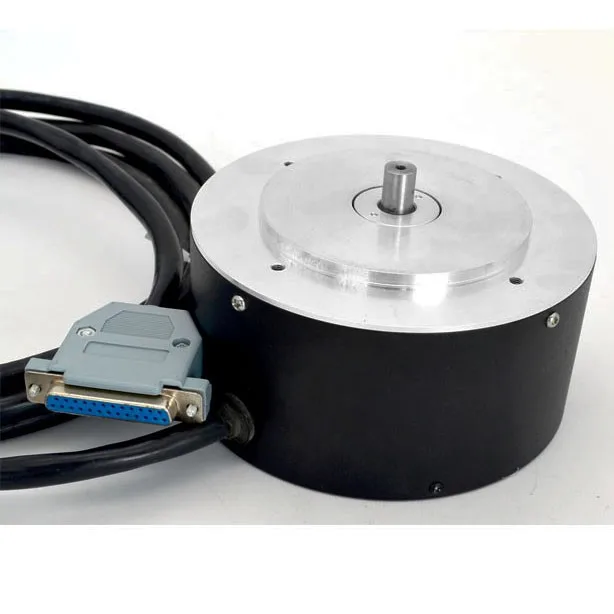

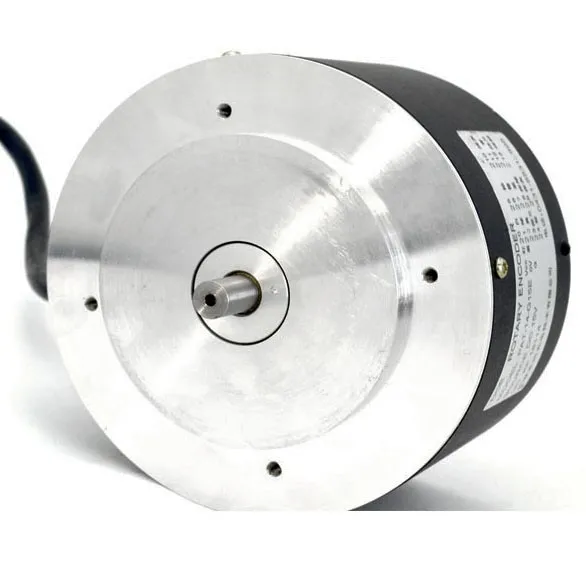

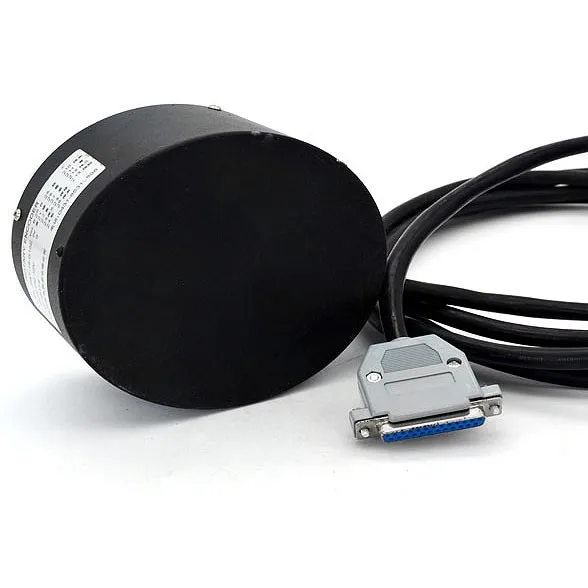

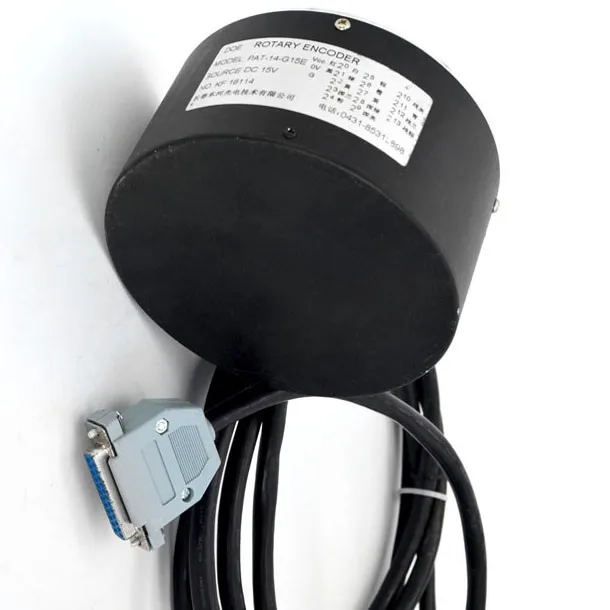

PAT-14-G15E

Technical data: 14bit,DC15V,output voltage,cable lead out at side

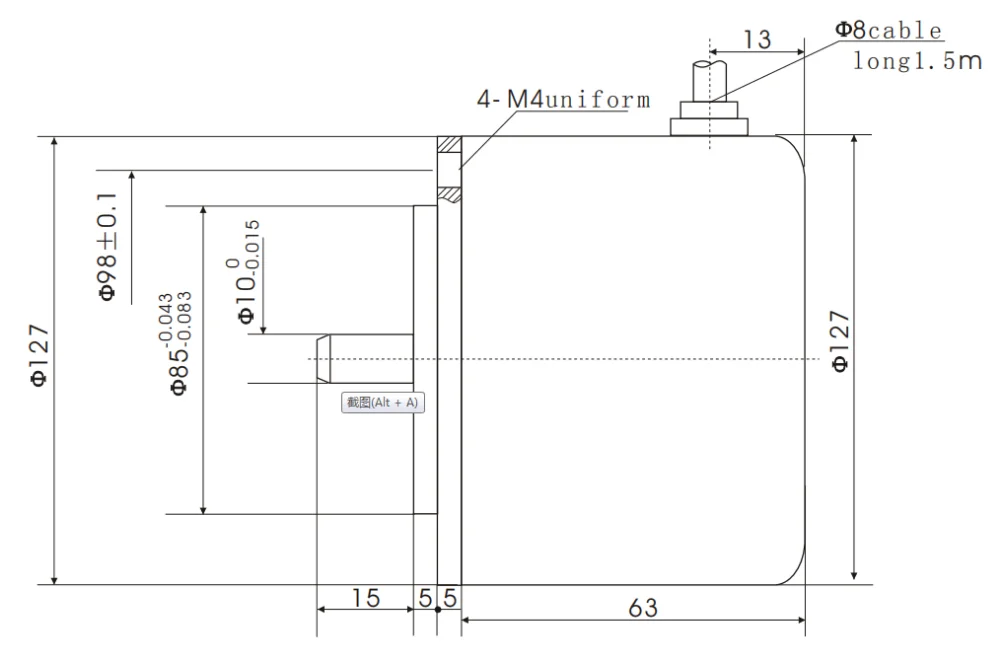

External View

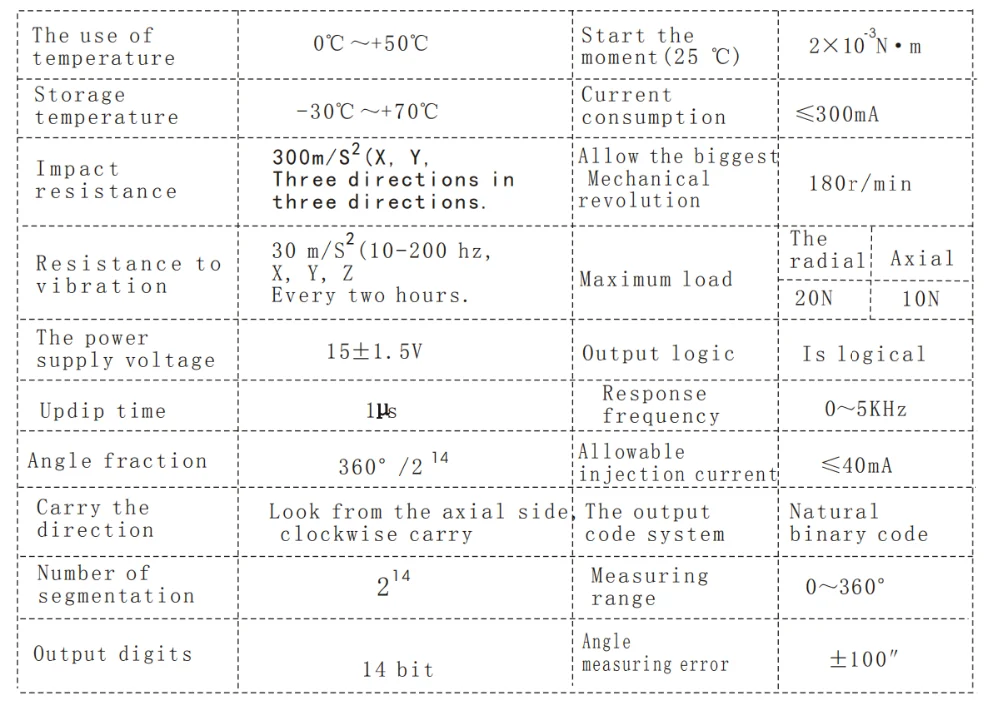

Table Specifications

*Good reliability, long life,anti-dust performance

*Stainless steel shaft has a higher stability and protection

*sturdy and durable, easy to install, optional various output mode, etc

*quality control, better delivery control and better cost control

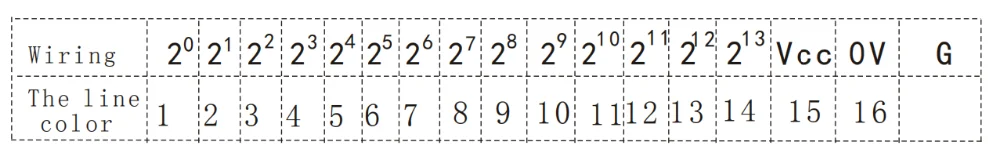

Specifications of Connection

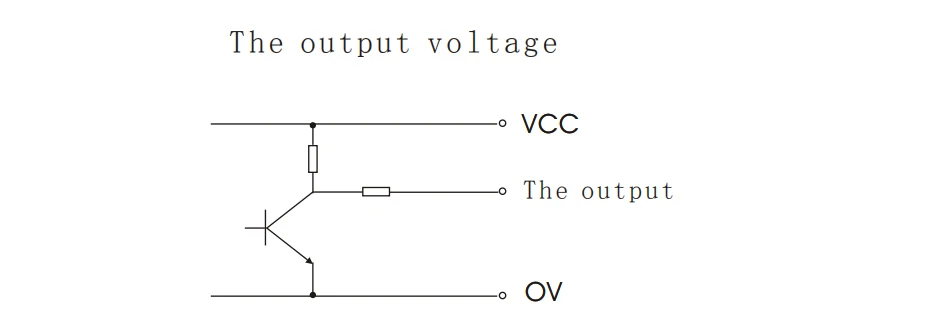

Output circuit

Detailed picture

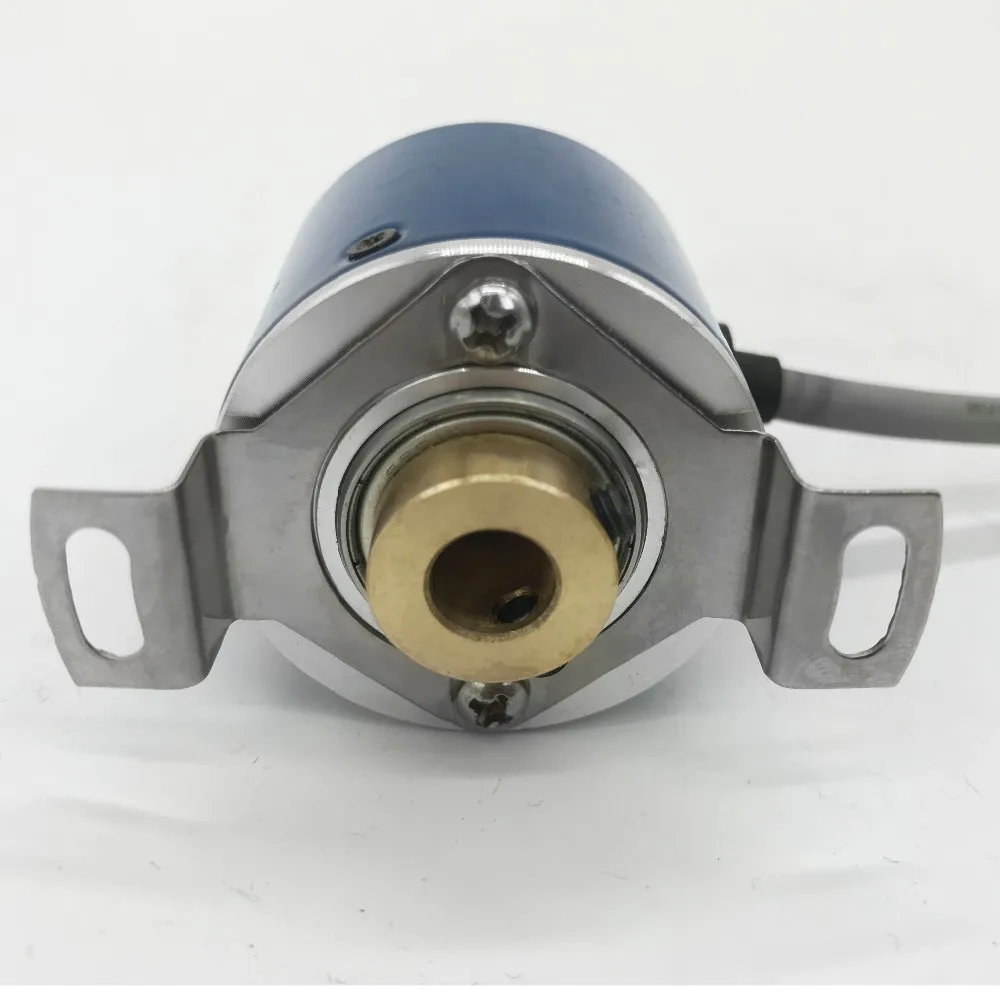

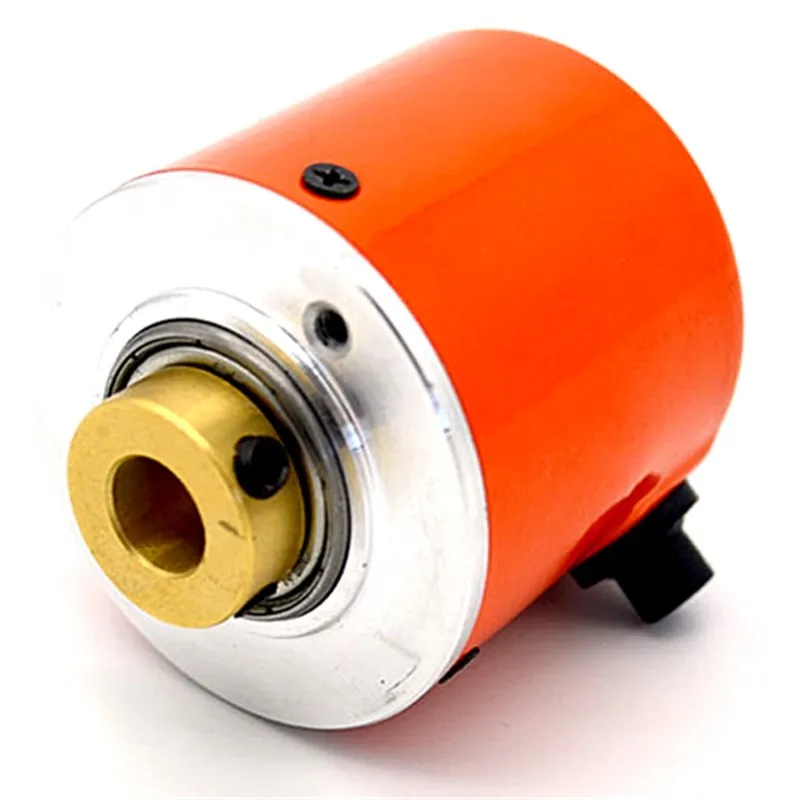

66MM 20MM BAUMER BRAND HOLLOW SHAFT ROTARY ENCODER FOR ELEVATOR

Resolution 2048,4096,8192P/R
Supply Voltage DC5V±5%
VH Output Voltage ≥2.5V
VL Output Voltage ≤0.5V
Current Consumption ≤200mA
Output Phase A.B.Z(U.V.W available)
Frequency Response 200kHz Max
Rise / Fall Time ≤1μS
Starting Torque 9.8*10-3N*m(+25℃)
Shaft Loading Radial 40N Axial 20N
Rotating Inertia 6.5*10-4Kg*m2
Max Rotating Speed 6000r/min
Vibration Resistance 70m/s2(10~200Hz)2 Hours in XYZ Direction
Shock Resistance 980m/s2(3 Times in XYZ Direction,each time 11ms)
Protection IP52
Operation Temperature -10℃~+70℃
Storage Temperature -20℃~+80℃
Operating Humidity 30~85%RH
Weight(no cable) 0.5Kg
Accessories Elastic Mounting Plate

66MM 20MM BAUMER BRAND HOLLOW SHAFT ROTARY ENCODER FOR ELEVATOR

66MM 20MM BAUMER BRAND HOLLOW SHAFT ROTARY ENCODER FOR ELEVATOR

66MM 20MM BAUMER BRAND HOLLOW SHAFT ROTARY ENCODER FOR ELEVATOR

66MM 20MM BAUMER BRAND HOLLOW SHAFT ROTARY ENCODER FOR ELEVATOR66MM 20MM BAUMER BRAND HOLLOW SHAFT ROTARY ENCODER FOR ELEVATOR66MM 20MM BAUMER BRAND HOLLOW SHAFT ROTARY ENCODER FOR ELEVATOR

Cable Color Blue Blue/Black Green Green/Black Yellow Yellow/Black Brown
Signal A A(_) B B(_) Z Z(_) U
Signal A A(_) B B(_) Z Z(_)
Cable Color Brown/Black Grey Grey/Black White White/Black Red Black Shield
Signal U(_) V V(_) W W(_) Vcc 0V FG
Signal

Vcc 0V FG

66MM 20MM BAUMER BRAND HOLLOW SHAFT ROTARY ENCODER FOR ELEVATOR

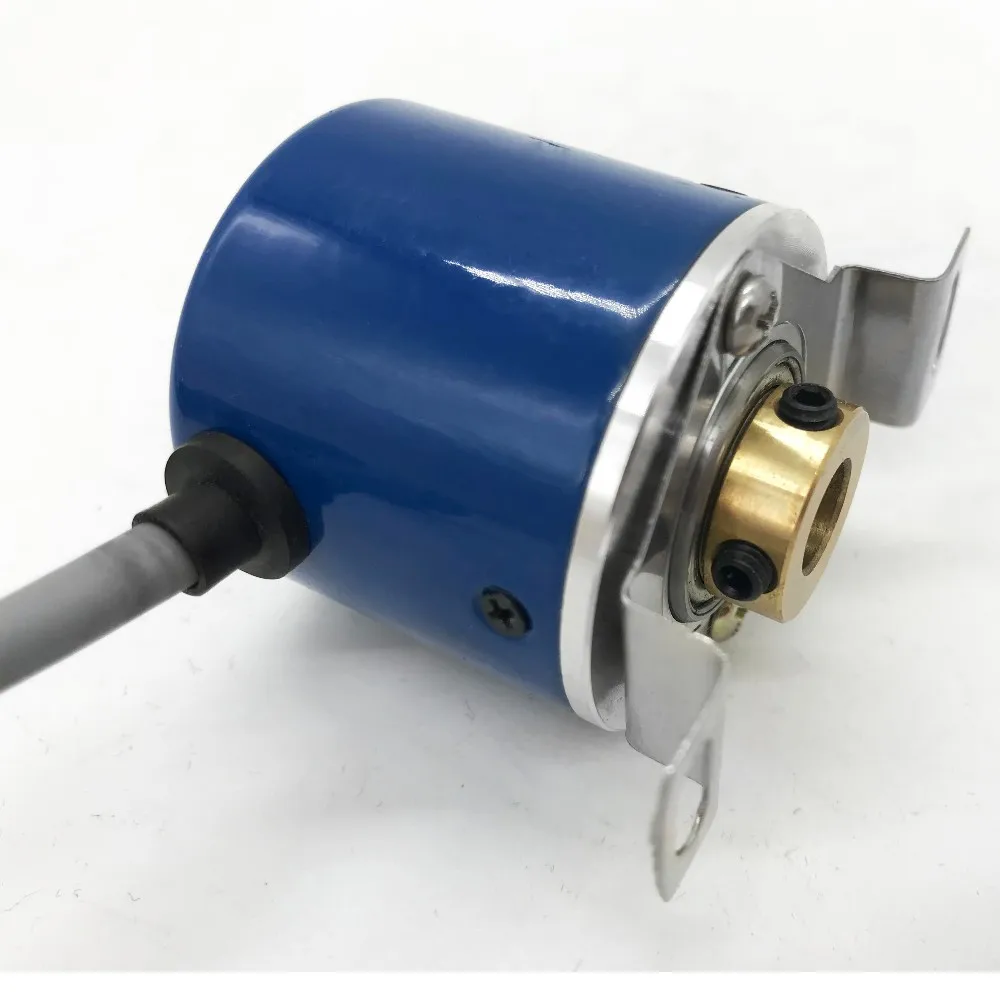

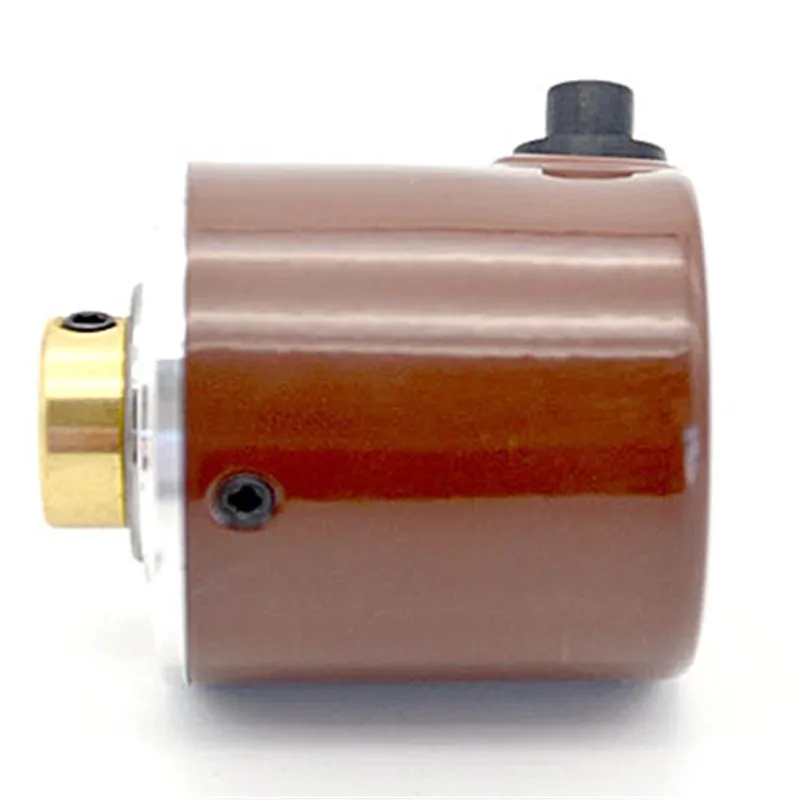

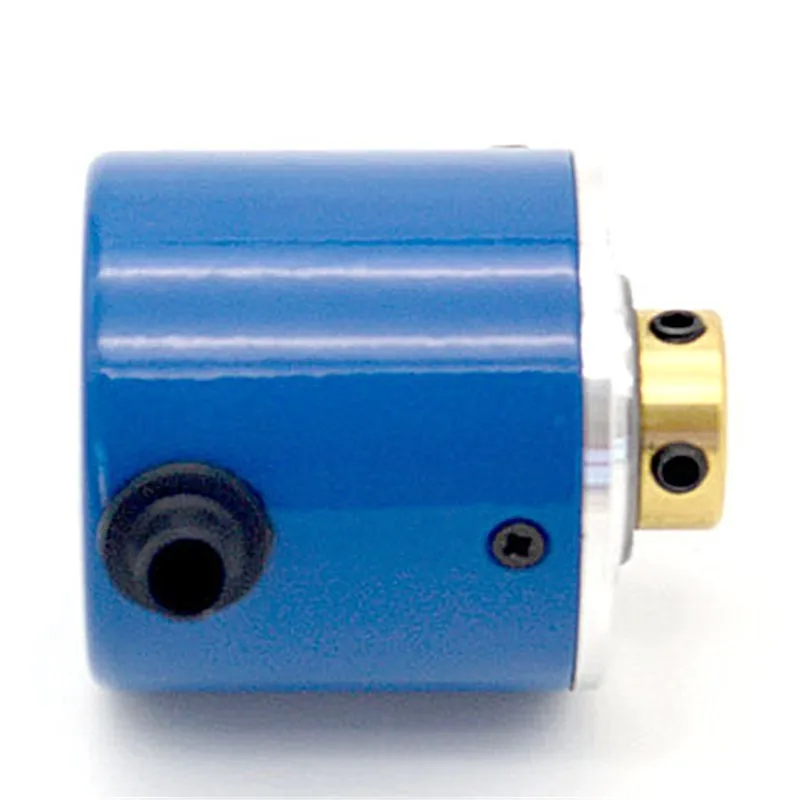

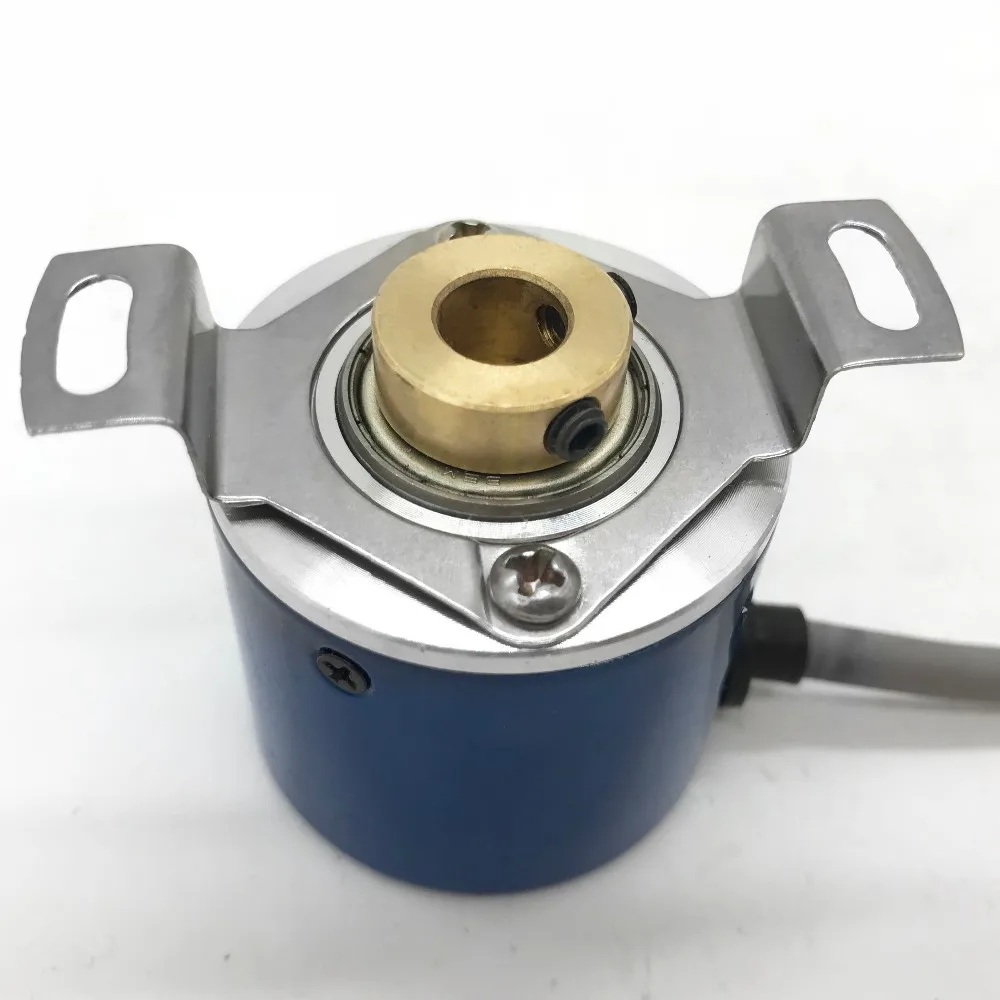

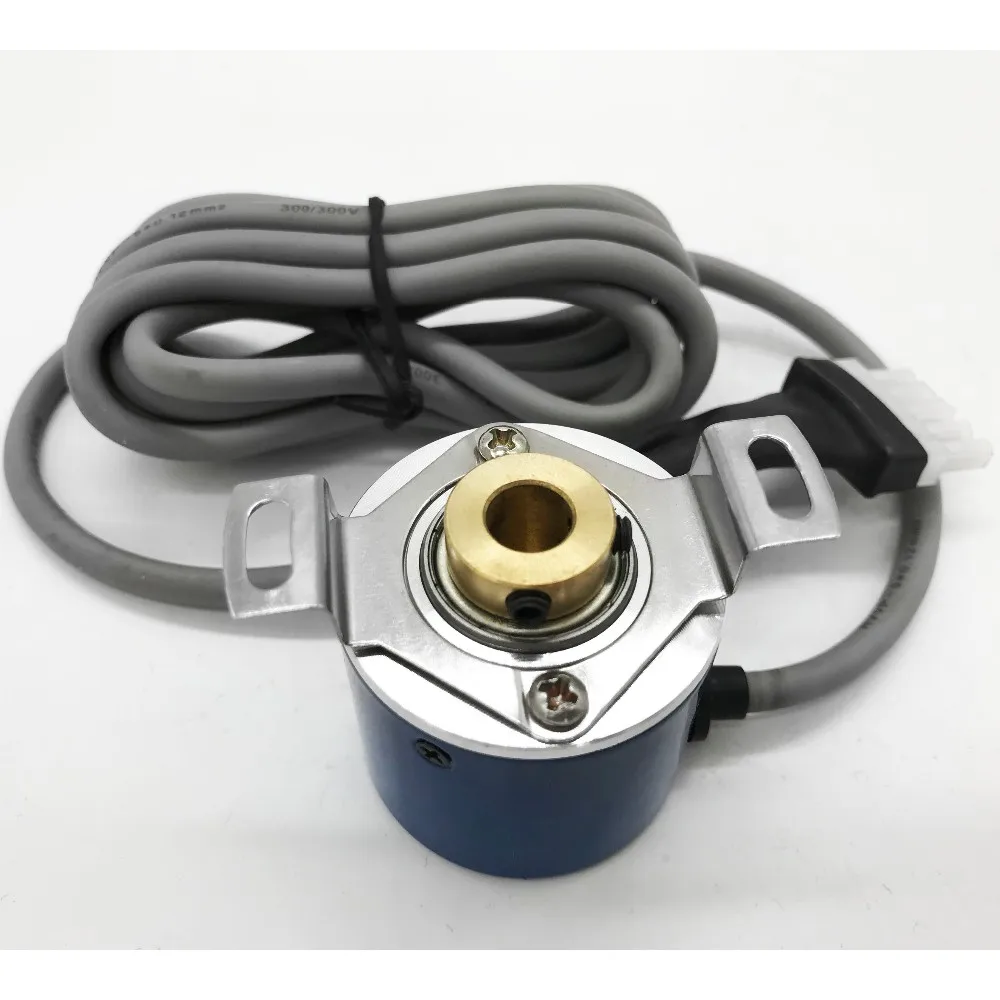

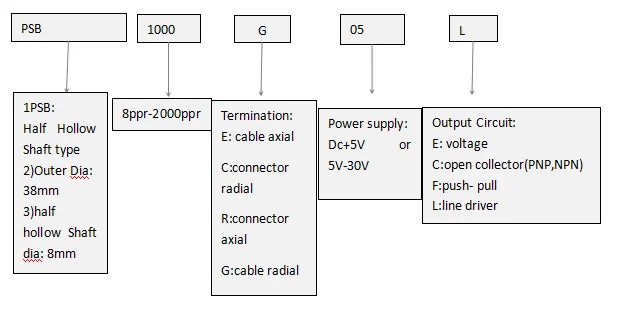

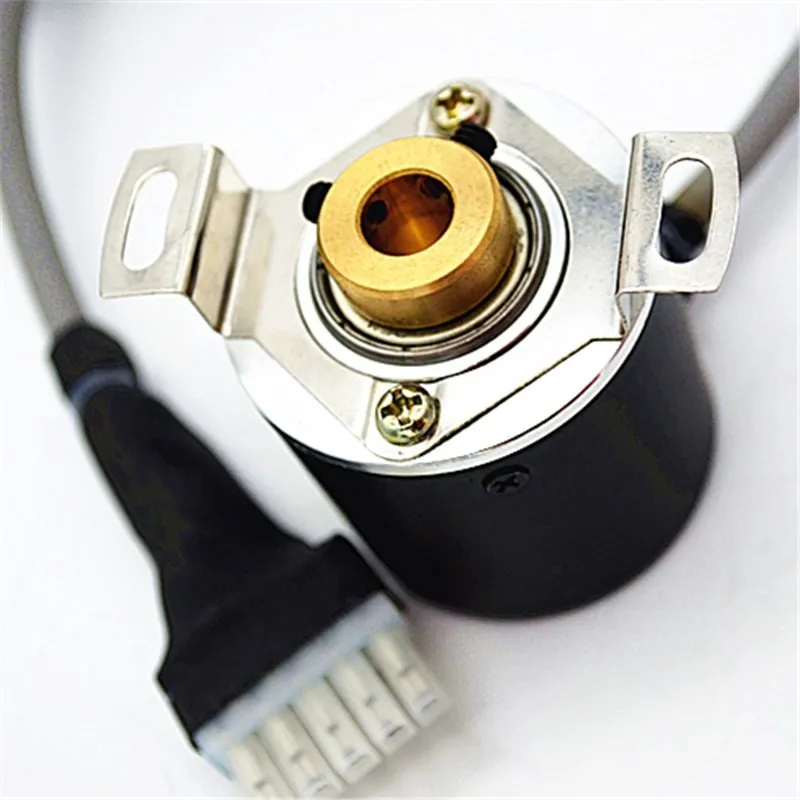

PSB-1024-G05L universal machine encoder/8mm rotary encoder

*half hollow shaft

*output circuits : line driver,open collector,push-pull,voltage

*pulse :0-3000ppr

*Supply voltage 😀 c +05v -24v

*outer Diameter:38mm,half hollow shaft Diameter:8mm

Product Introduction

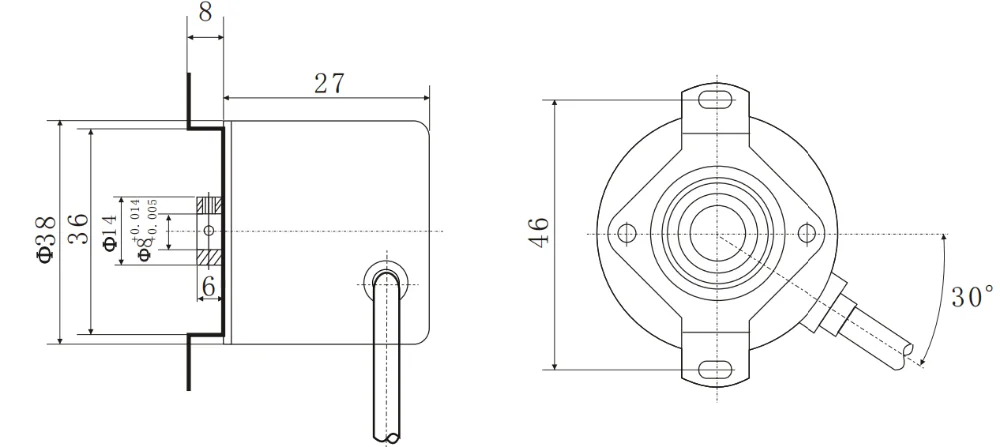

External View

*Certification:GB/T19001-2000,ISO9001:2000
*Stainless steel shaft has a higher stability and protection
*sturdy and durable, easy to install, optional various output mode, etc
*quality control, better delivery control and better cost control

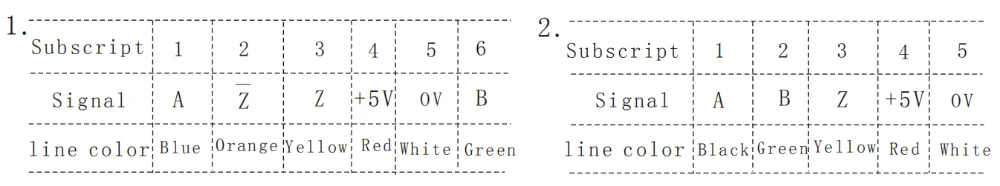

Specifications of Connection

Product Parameters

Operating temperature
-10℃~+60℃
Shock resistance
980m/S2
Storage temperature
-20~+80℃
Vibration resistance
50m/S2
current consumption
80mA
output frequency
10-200KHZ
Supply voltage
D c +5Vor 5V-24V
Starting torque(25℃)
2×1 0-3 N·m
Max.speed
5000r/min
Moment of inertia
4×1 0-7 N·m·S2
Radial direction Max. Allowable load
10N
Axial direction Max. Allowable load
10N
Product Details Show
